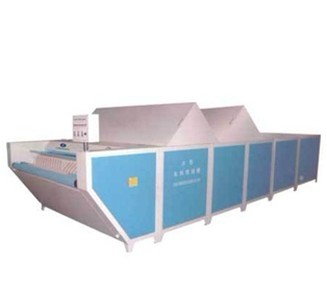

CON-260/260L大型預縮定型機

Large Sized Shrinking And Forming Machine

標準配備:

• CON200-270系列機型均分為：加濕預熱區，干燥區和冷卻定型區,都以輸送帶連貫每一個裝置。
• 自動送布裝置：讓原布與傳送帶之間保持一定垂弧，使原布在無張力狀態下傳送。
• 緩和裝置：布料被蒸汽濕潤后及振動松弛，此區可將布料完全軟化。
• 吸風罩裝置：吸收加濕區的殘留蒸汽,使工作場所環境清新。
• 加熱裝置：上下兩端采用電加熱熱風循環，對于加工困難的化學纖維產品也能得心應手。
• 冷卻裝置：采用強力吸風冷卻系統，可使布料完全冷卻及安定。
• 卸布裝置：通過靚臂擺動將布料來回折疊整齊。
• 計碼器：進口計碼器，精確測量布長及縮率。

The  machine includes:

• A wetting &pre-heating zone，drying zone and cooling zone which are connected by conveying belts for all CON series.
• Afabric auto-feeding & release unit:fabric can be released & conveyed without any tension under a radian between the feed fabric and unit.
• A dampening unit:fabric is softened via a vibrator after being moist urized in this unit.
• A moisture-suction unit:it sucks the leftover steam from the wetting zone to make a better working environment.
• A heating unit : it is an electrecally driven unit with hot air circulation on bothsides. This unit can also handle chemical fiber fabric well.
• A cooling unit : fabrie can be cooled thoroughly with a powertul air suction cooling system.
• A collecting unit : shrunk fabric is folded neatly through a rocker arm.
• A metering unit  : fabric length and shrinkage rate is meacured accuratelyvia the imported metering unit.
