| 本機采用雙直針,立式自動加油旋梭勾線,滑桿挑線,構成二行雙線鎖式線跡.針桿采用機械式分離與聯合;上下軸用滾珠軸承支承,同步齒輪開帶傳動;柱塞式油泵潤滑系統.采用針桿擺動與送布牙同步送料方式,旋鈕式圓盤調節針距和杠桿式倒須送料機構,在梭心內的縫線回拉彈簧,保證底線與面線得到一致的縫紉效果,適用縫制大衣,制服.牛仔褲,包袋.裝飾縫等JT8528M-3.JT8528M-5型采用數字電路控制,具有自動剪線,自動定針位,自動定針數等功能.配置電子伺服電動機,性能穩定,操作效率極高。 |

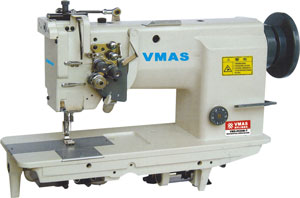

This machine adopts two straight needles, Vertical-axis rotating feature for catching thread loops and Sliding bar take-up to produce tow lines of double lockstitch. The needle bar can be engaged and disengaged mechanically and the arm shaft and hook shaft are supported by ball bearings. It is provided with synchro tooth belf for driving, plunger pump for lubricating, knob-type stich regulator and lever type reverse feeding mechanism. A bobbin thread pullback spring in the bobbin case guarantees the accrdance of needle thread and bobbin thead, Besides it featurs synchronized of needle bar and feed dog. It is recommended for stitching overalls, uniforms, jeans and decora-tive sewing on bags. JT8528M-3,JT8528M-5 is designed with electronic servo motor, digital circuit control and automatic sewing modes such as auto trimming, auto needle positioning and auto sitich presetting. It features stable and efficient sewing performance |
 |
