牛仔褲車縫實樣效果圖：

產品說明：
1、使用專利的特制模板和特殊的框架，模板可輕易自行制作，適用于各種形狀的后袋裝飾線車縫。
2、裝飾線花樣可輕易通過觸摸屏自行輸入。
3、可因應款式需要而任意改變車縫樣式，如設定車縫兩邊或四邊，后對角直線以X型車縫等；可設定以單線，曲折縫線或自訂花樣線布方式車縫；并可任意選定起縫點及接駁縫針數。
4、自動送料裝置，送料裝置以雙夾布器形式操作，第一夾布器將縫料送入機頭下車縫，而第二個夾布器同時將機頭下已縫好的縫料送出，入料與出料不間斷的連續同步工作；由于機械操作簡單快捷，一個操作員可同時操作2至3臺機械。
5、操作員只需將縫料放好，車縫及收料工作機械自動完成，一個人最多可操作3臺機械，使產量大大提高。

機械說明：
1、車縫后袋裝飾線平均工時（放料+車縫+收料）：12秒。
2、車縫皮制商標平均工時（放料+車縫+收料）為：12秒/個。
3、車縫褲省平均工時（放料+車縫+收料）為：6秒/個。
4、車縫魔術貼平均工時（放料+車縫+收料）為：10秒/個。

技術規格：
使用擺動式特大旋梭（帶供油潤滑裝置）。
設置自動剪線，自動抬壓腳。
最高縫速2500轉/每分鐘（設定針步上度于3.5MM計算）。
針步長度：0.1-12.7MM可調
使用電壓：220V單相，50/60Hz；耗電量：1.2KW

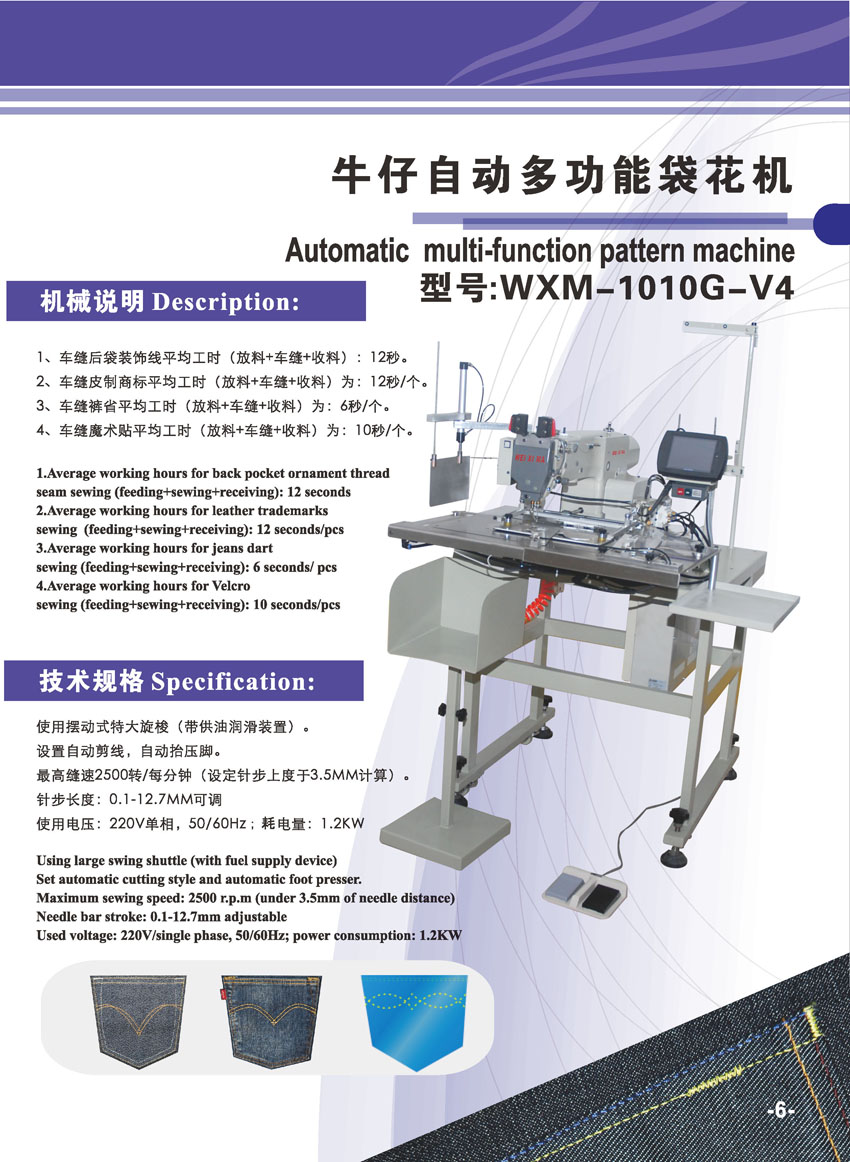

Automatic multi-function pattern machine

Production description

1.Using special patented templates and special frame, template can easily produce by their own, suitable for all kinds of shape's back pocket decorative stitching.

2. Via the touch screen input decorative stitching pattern easily.

3. Can be changed the sewing pattern to fit different style. If setting sewn two sides or four sides, then sewing X by diagonal line; can be set to single, zigzag stitched seams or custom pattern cloth line mode. And can be selected the starting point and join stitches.

4. Automatic feeding device, feeding device operates by double clamp device; the first clamp device put the material in the head to sewn, and the second clamp device put out the sewing material from the head, feeding and discharging continuous synchronous working. Because the machine is easily and quickly operated, so one worker can operates 2 to 3 machine at the same time.

5. Operator only takes the material away, sewing and winding machine automatically, one person can operate 3 machines. Increase output.

Description

1. Average working hours for back pocket ornament thread seam sewing (feeding+sewing+receiving): 12 seconds
2. Average working hours for leather trademarks sewing  (feeding+sewing+receiving): 12 seconds/pcs
3. Average working hours for jeans dart sewing (feeding+sewing+receiving): 6 seconds/ pcs
4. Average working hours for Velcro sewing (feeding+sewing+receiving): 10 seconds/pcs

Specification

Using large swing shuttle (with fuel supply device)

Set automatic cutting style and automatic foot presser.

Maximum sewing speed: 2500 r.p.m (under 3.5mm of needle distance)

Needle bar stroke: 0.1-12.7mm adjustable

Used voltage: 220V/single phase, 50/60Hz; power consumption: 1.2KW
