| Model |
Output (HP) |

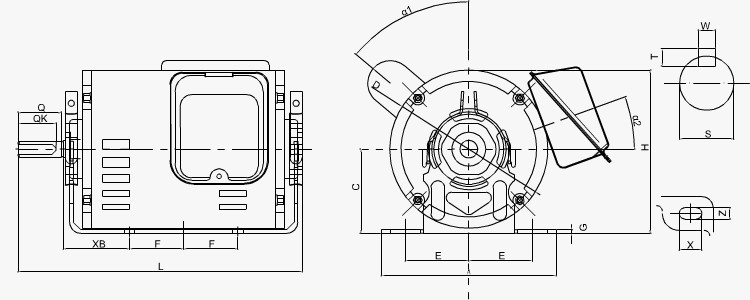

Pole | Frame | Fig | MOTOR | SHAFT END | |||||||||||||||||||
| A | B | C | D | E | F | G | H | L | a1 | a2 | X | XB | Z | Q | QK | R | S | T | U | W | |||||
| YUT/YCT | 1/4 | 4 | YUT8024 | 1 | 128 | 80 | 132 | 56 | 45 | 2.5 | 136.8 | 240 | 50 | 17.5 | 18 | 45 | 7 | 30 | 27 | - | 14 | - | 1 | - | |
| 1/3 | 4 | YUT8034 | 1 | 148 | 80 | 132 | 56 | 45 | 2.5 | 136.8 | 240 | 50 | 17.5 | 18 | 45 | 7 | 30 | 27 | - | 14 | - | 1 | - | ||
| 1/2 | 4 | YCT8044 | 1 | 150 | 80 | 140/145 | 62.5 | 50 | 2.5 | 148.5/152.5 | 250 | 50 | 17.5 | 20 | 50 | 10 | 40 | 28 | - | 16 | 5 | 3 | 5 | ||
| 3/4 | 4 | YCT9064 | 1 | 165 | 90 | 165 | 61.5 | 38 | 3 | 172.5 | 305 | 30 | 17.5 | 20 | 68 | 10 | 40 | 28 | - | 19 | 6 | 3.5 | 6 | ||
| 1 | 4 | YCT9074 | 1 | 165 | 90 | 165 | 61.5 | 38 | 3 | 172.5 | 305 | 30 | 17.5 | 20 | 68 | 10 | 40 | 28 | - | 19 | 6 | 3.5 | 6 | ||
| 型號 | 電壓 | 頻率 | 輸出功率 | 轉速 | 效率 |
|
|
堵轉電流 | |||||
| W | HP | ||||||||||||
| YCT7024 | 220 | 50 | 180 | 1/4 | 1420 | 55 | 2.8 | 1.8 | 12 | ||||
| YCT7034 | 250 | 1/3 | 58 | 16 | |||||||||
| YCT8044 | 400 | 1/2 | 63 | 2.5 | 22 | ||||||||
| YCT8054 | 550 | 3/4 | 65 | 30 | |||||||||
| YCT9064 | 600 | 4/5 | 66 | 2.2 | 35 | ||||||||
| YCT9074 | 750 | 1 | 72 | 56 | |||||||||
| YCT9104 | 1000 | 1.5 | 77 | 2.0 | 68 | ||||||||
